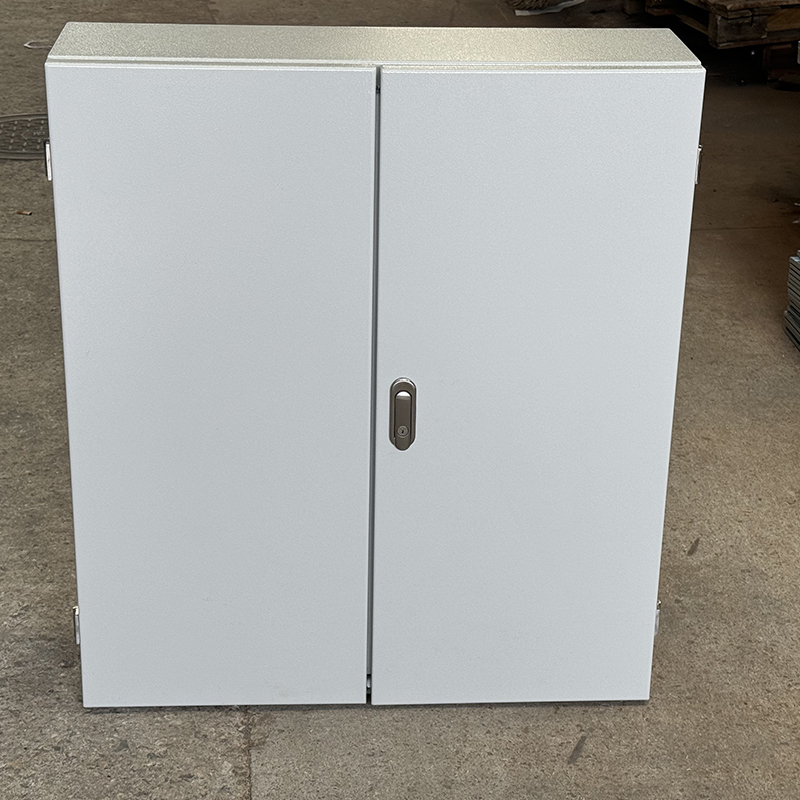

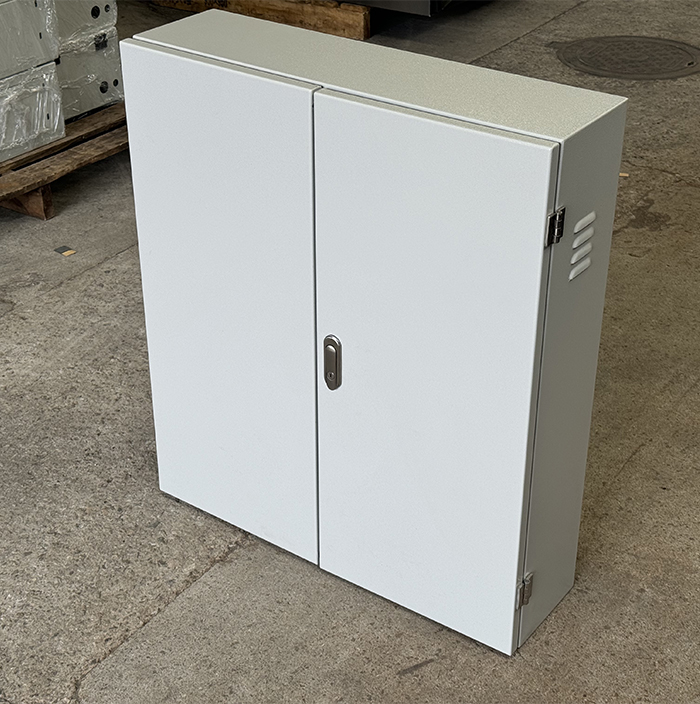

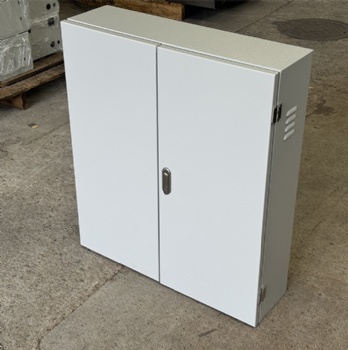

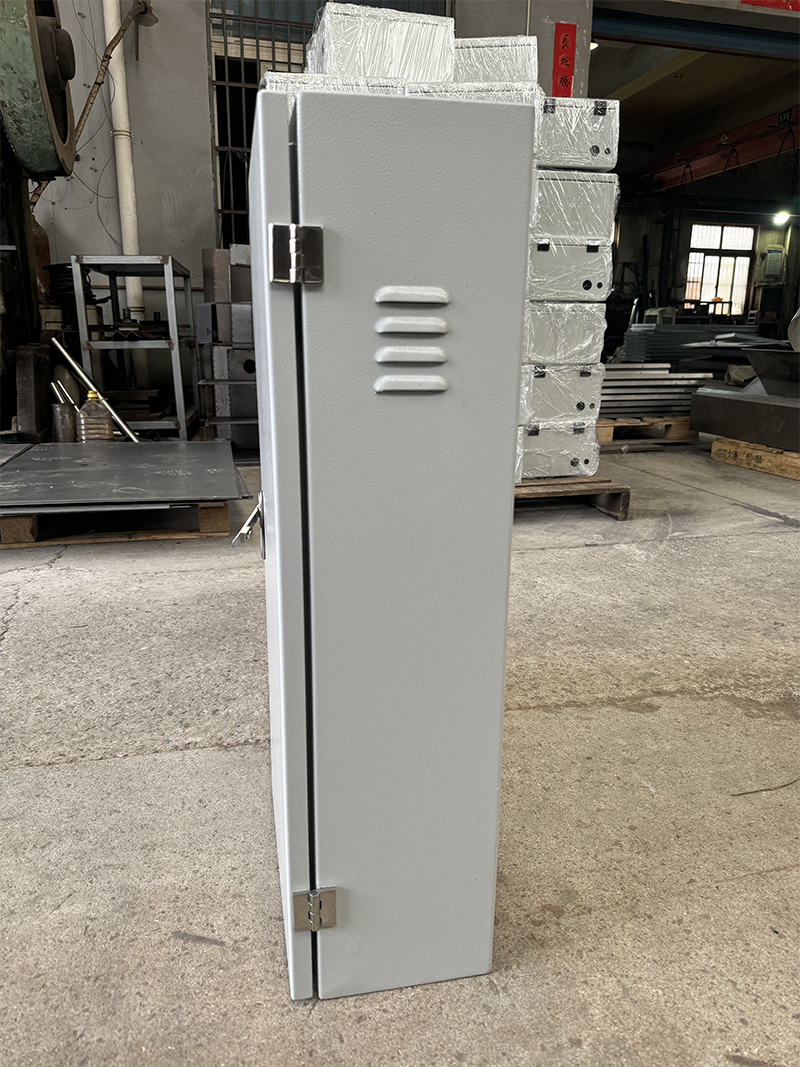

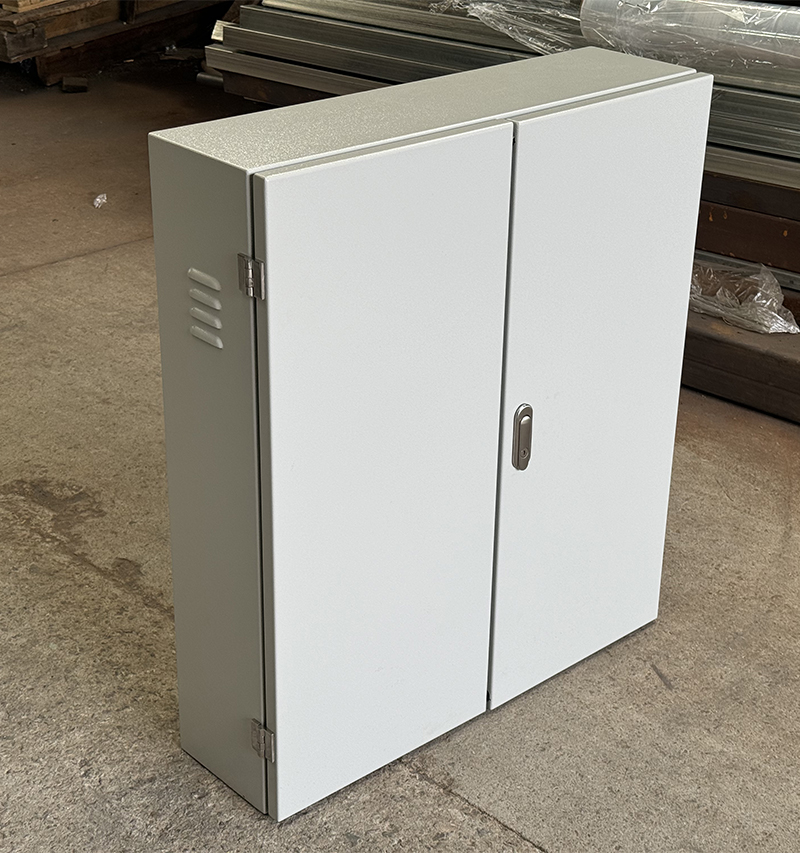

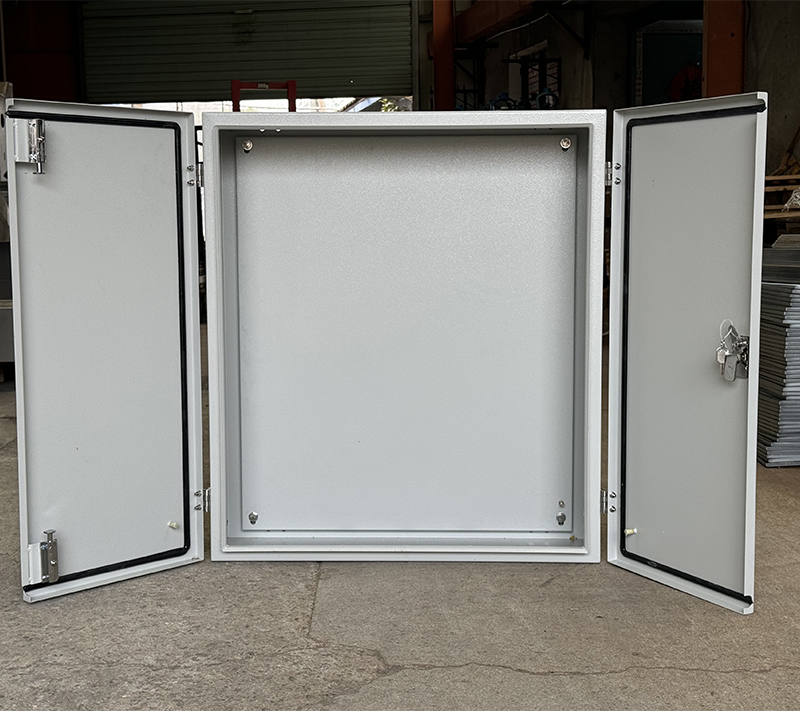

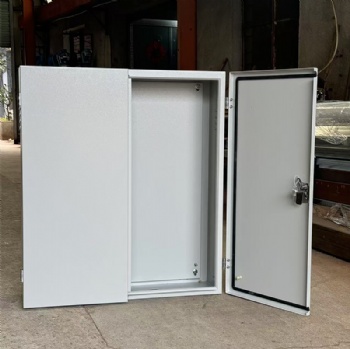

Stainless Steel Sheet Metal Junction Ip 66 Ip65 Waterproof Gabinetes Electrical Indoor Electrical Galvanized Switch Box
We are a professional sheet metal fabricator with 18 years OEM experiences. Custom Sheet Metal Products In Low MOQ: Products Name Stainless Steel Sheet Metal Junction Ip 66 Ip65 Waterproof Gabinetes Electrical Indoor Electrical Galvanized Switch Box
PRODUCT FEATURE
| Material | 304 stainless steel housing,front door and rain cover(201 stainless steel and 316 stainless steel optional |
| Mounting plate | Galvanized sheet |
| Surface treatment | Wire drawing or powder coated |

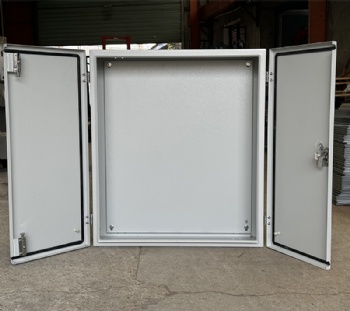

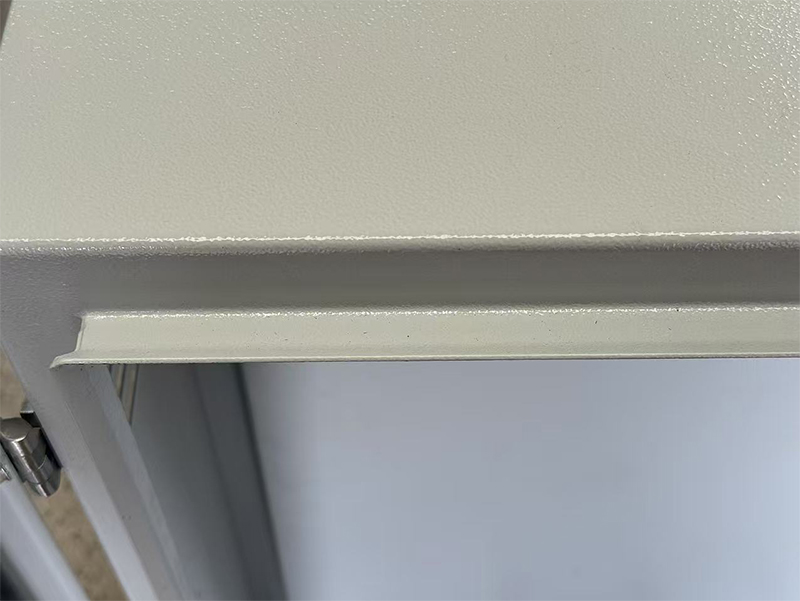

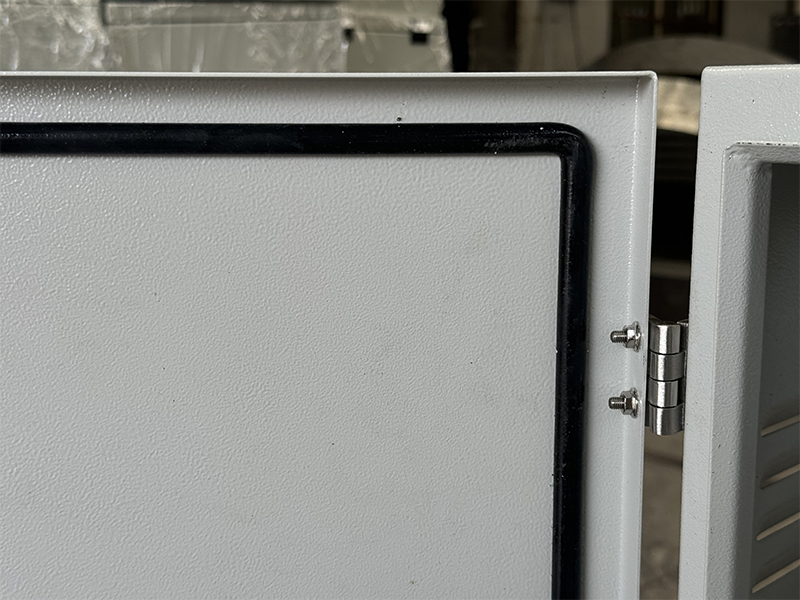

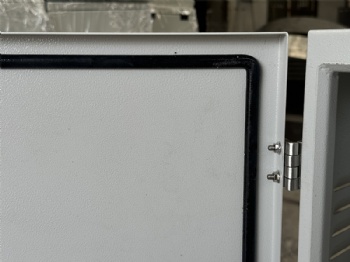

| Standrd configuration | Housing,door,rain cover, mounting plate, seal strip,grounding kit, lock |
| Protection | IP65 |
| Against mechanical impacts | IK10 |
Specification Date Nonstandard products are customizable
No | Type no | Height (mm) | Width(mm) | Depth(mm) | Enclosure&door(mm） | Mounting plate（mm) |
| 1 | HSSLC020201 | 200 | 200 | 100 | 1.2 | 1.5 |
| 2 | HSSLC0302015 | 300 | 200 | 150 | 1.2 | 1.5 |
| 3 | HSSLC0302502 | 300 | 250 | 200 | 1.2 | 1.5 |
| 4 | HSSLC040302 | 400 | 300 | 200 | 1.2 | 1.5 |
| 5 | HSSLC050302 | 500 | 300 | 200 | 1.2 | 1.5 |
| 6 | HSSLC050402 | 500 | 400 | 200 | 1.2 | 1.5 |
| 7 | HSSLC0505025 | 500 | 500 | 250 | 1.2 | 1.5 |
| 8 | HSSLC060402 | 600 | 400 | 200 | 1.2 | 1.5 |
| 9 | HSSLC060502 | 600 | 500 | 200 | 1.2 | 1.5 |
| 10 | HSSLC0605025 | 600 | 500 | 250 | 1.2 | 1.5 |
| 11 | HSSLC070502 | 700 | 500 | 200 | 1.5 | 2 |
| 12 | HSSLC0705025 | 700 | 500 | 250 | 1.5 | 2 |
| 13 | HSSLC0806022 | 800 | 600 | 220 | 1.5 | 2 |
| 14 | HSSLC0807025 | 800 | 700 | 250 | 1.5 | 2 |
| 15 | HSSLC080603 | 800 | 600 | 300 | 1.5 | 2 |
| 16 | HSSLC100603 | 1000 | 600 | 300 | 1.5 | 2 |
| 17 | HSSLC100803 | 1000 | 800 | 300 | 1.5 | 2 |
| 18 | HSSLC120802 | 1200 | 800 | 200 | 1.5 | 2 |
| 19 | HSSLC121003 | 1200 | 1000 | 300 | 1.5 | 2 |
| 20 | HSSLC121004 | 1200 | 1000 | 400 | 1.5 | 2 |
