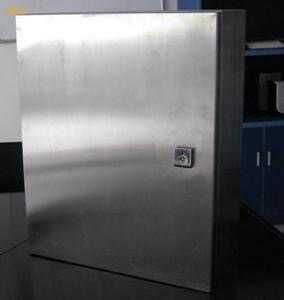

Stainless steel wall mouting electrical enclosure

Description
Inquiry

PRODUCT FEATURE

Material

Surface treatment

Protection grade

Mounting plate

Against mechanical impacts

Stardard configuration

Cold-rolled steel housing and front door made of 304 stainless steel plate（201 stainless steel or 316 stainless steel optional)

Wire drawing or powder coated

IP54, IP55, IP65, IP66

optional

Galvanized sheet

IK10

housing, door, mounting plate,seal strip,grounding kit,lock

Full welding process,solid work

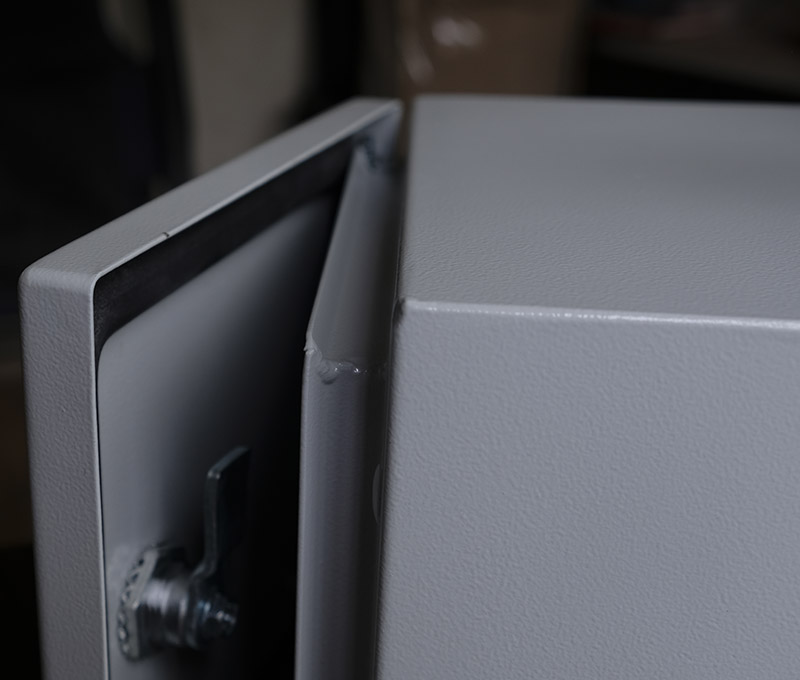

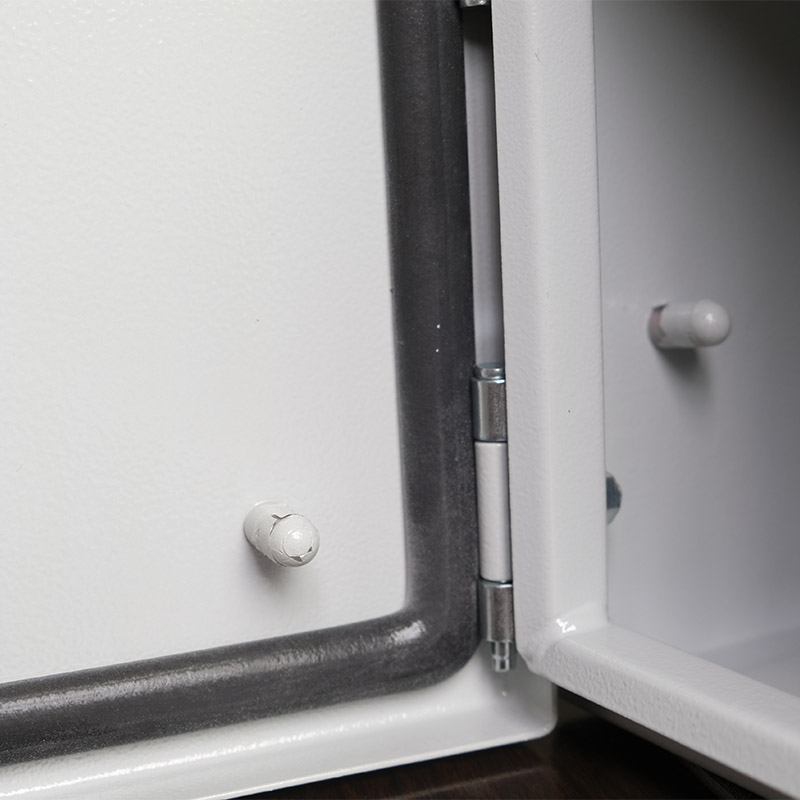

PU foam， seal is good

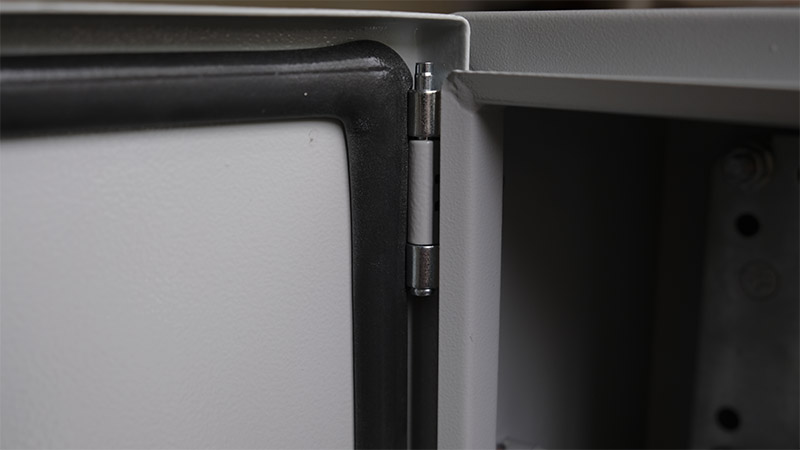

High quality hinges ensure easy opening and closing

High quality locks are more durable

Features of products

PU foam seal ensures that the box reaches IP65 protection level

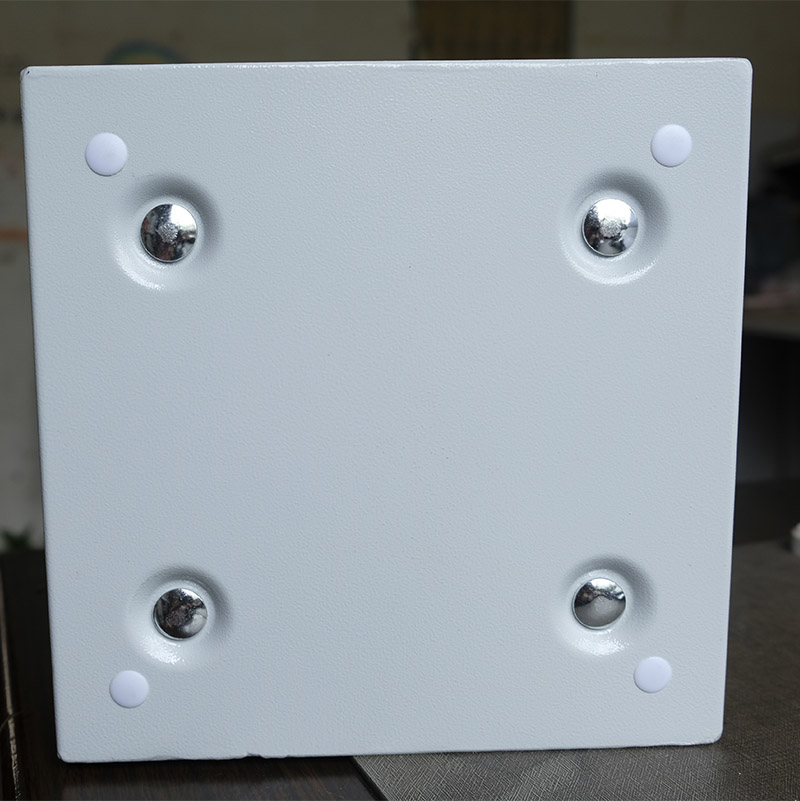

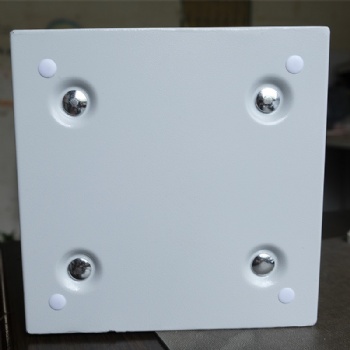

Various types and sizes of convex ensure convenient access

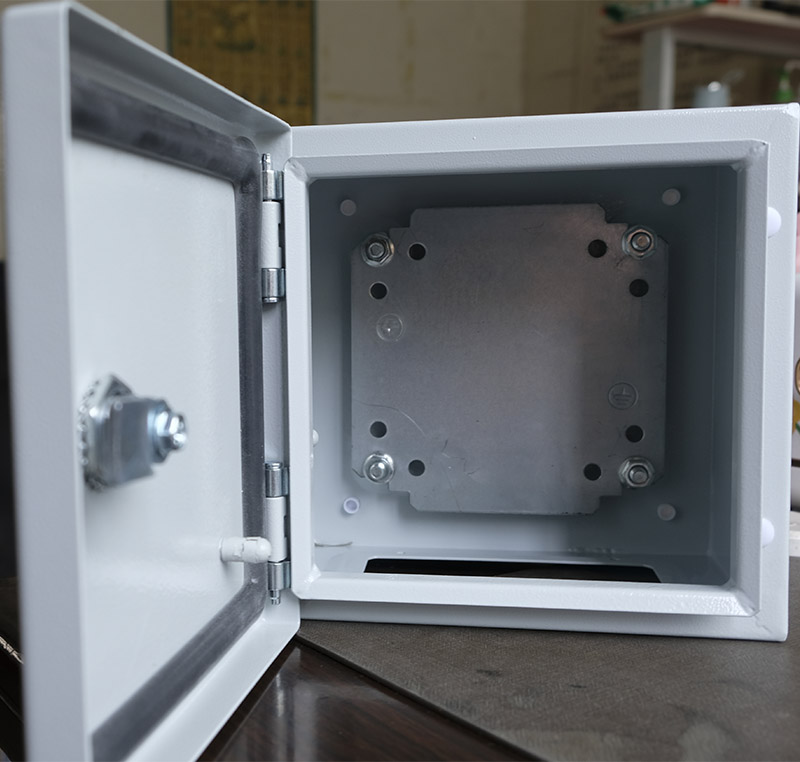

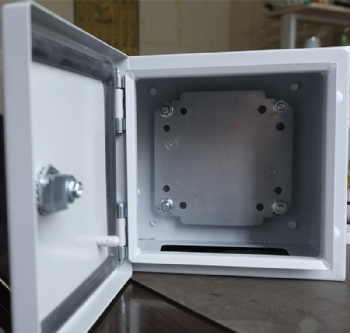

Powder coated mounting plate can also be used for wiring outside the box

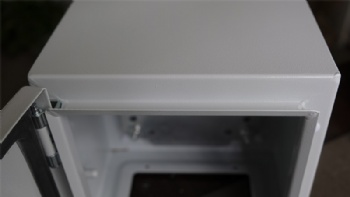

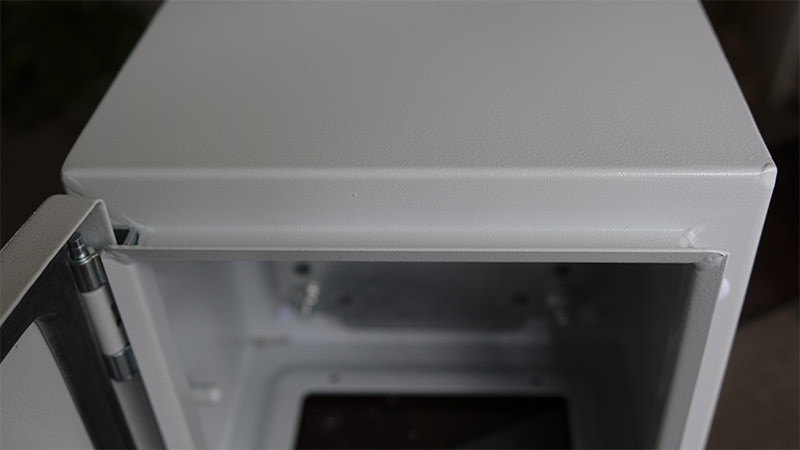

The multi-layer protective groove at the mouth of the box not only plays a strengthening role but also prevents dirt and water from entering the box when the door panel is opened

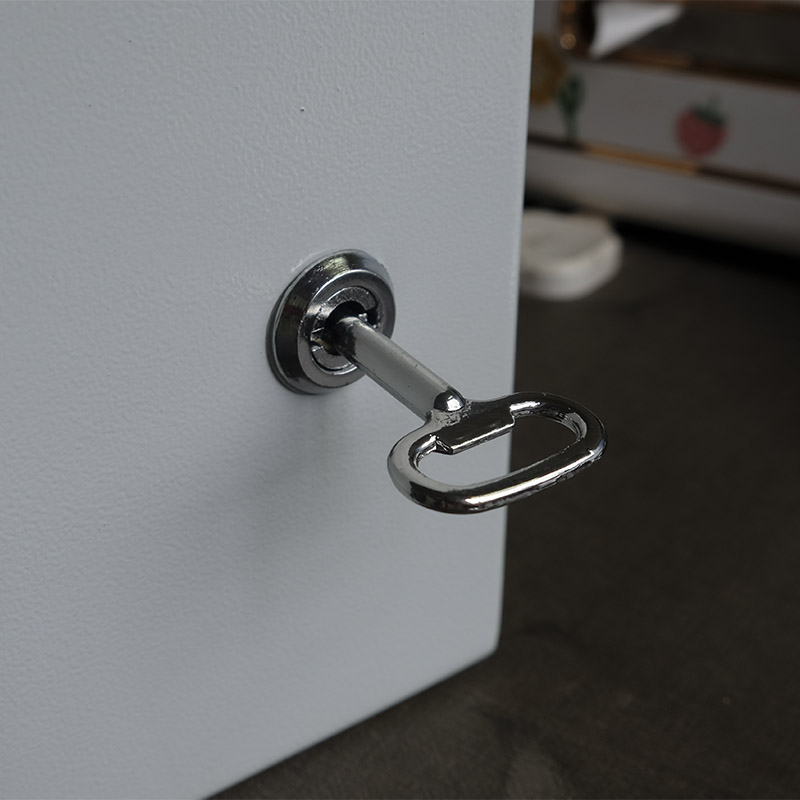

Professional lock system with double tooth lock core is extremely convenient for opening and closing

Specification Date

No	Type no	Height	Width	Depth	Enclosure&door(mm）	Mounting plate（mm)
1	HSS0202015	200	200	150	1.2	1.5
2	HSS0302015	300	200	150	1.2	1.5
3	HSS0302502	300	250	200	1.2	1.5
4	HSS0403015	400	300	150	1.2	1.5
5	HSS040302	400	300	200	1.2	1.5
6	HSS0403025	400	300	250	1.2	1.5
7	HSS0404015	400	400	150	1.2	1.5
8	HSS0404015	400	400	250	1.2	1.5
9	HSS050302	500	300	200	1.2	1.5
10	HSS050402	500	400	200	1.2	1.5
11	HSS050402	500	400	250	1.2	1.5
12	HSS0505025	500	500	200	1.2	1.5
13	HSS0505025	500	500	250	1.2	1.5
14	HSS060402	600	400	200	1.2	1.5
15	HSS0604025	600	400	250	1.2	1.5
16	HSS060502	600	500	200	1.2	1.5
17	HSS0605025	600	500	250	1.2	1.5
18	HSS0605025	600	500	300	1.2	1.5
19	HSS070502	700	500	200	1.5	2
20	HSS0705025	700	500	250	1.5	2
21	HSS070503	700	500	300	1.5	2
22	HSS080602	800	600	200	1.5	2
23	HSS0806025	800	600	250	1.5	2
24	HSS080603	800	600	300	1.5	2
25	HSS0807025	800	700	250	1.5	2
26	HSS100603	1000	600	300	1.5	2
27	HSS1008025	1000	800	250	1.5	2
28	HSS100803	1000	800	300	1.5	2
29	HSS101002	1000	1000	200	1.5	2
30	HSS120802	1200	800	200	1.5	2
31	HSS120802	1200	800	250	1.5	2
32	HSS121003	1200	1000	300	1.5	2
33	HSS121004	1200	1000	400	1.5	2
